Steel Ingot Casing

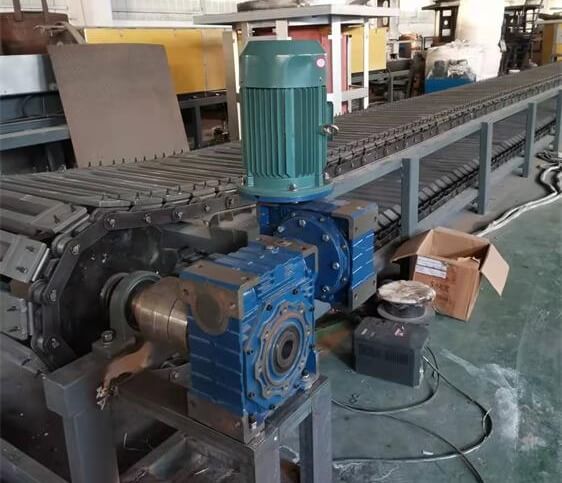

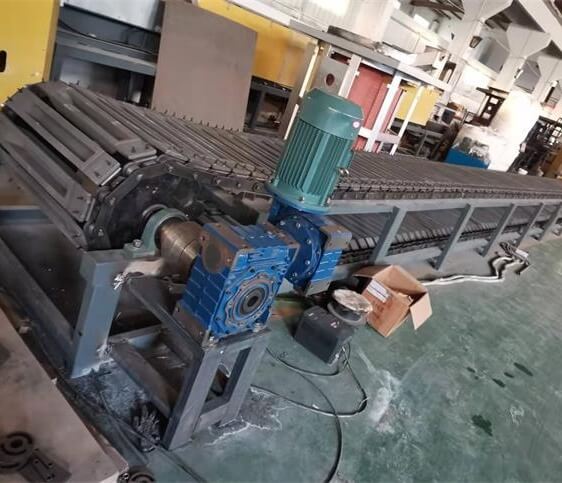

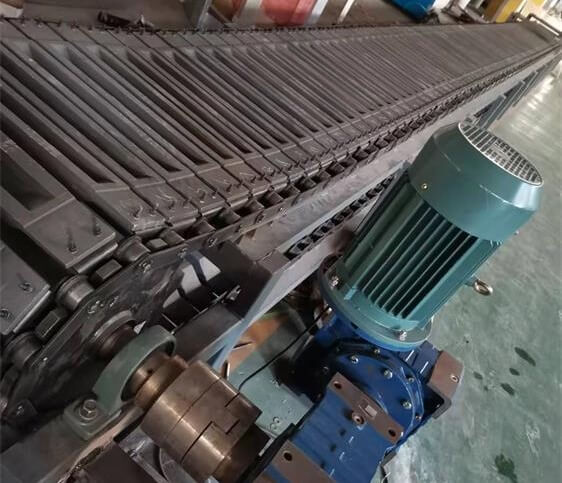

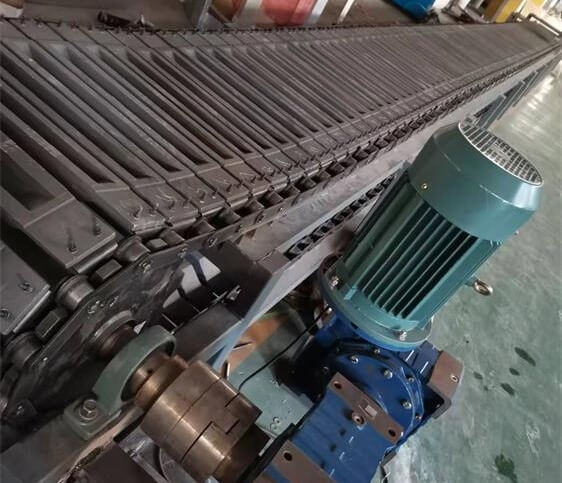

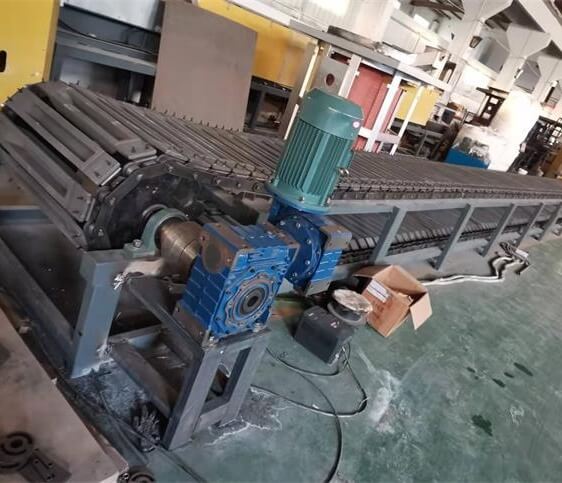

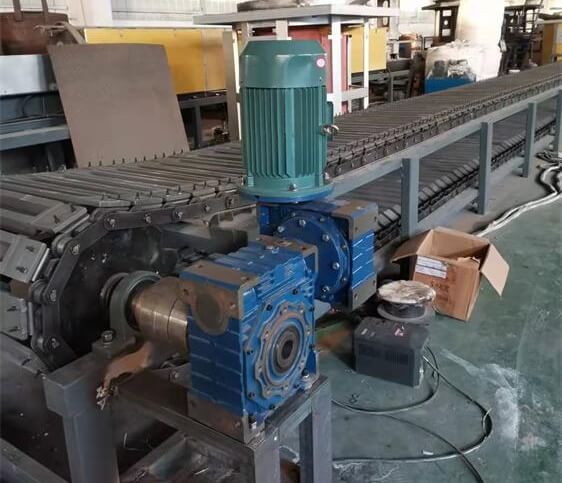

Judian automatic steel ingot casting machine (ingot production line) is an important supporting equipment for smelting plants to reduce labor costs and expand production benefits. Luoyang Judian ingot casting equipment adopts the automatic ingot falling technology, which replaces the manual and cumbersome beating mode to drop the ingot. In addition, the automatic ingot stacker and the back-end conveying equipment can be selected to form a complete ingot production line. The robot arm is flexibly used in the ingot casting machine so that the traditional manual stacking is completely replaced by the robot arm. Reducing labor costs also reduces the risk of employee injury, resulting in increased productivity.

• This equipment is straight-line, 1.3 meters wide, and 4-15 meters long;
• Ingots size: 12kg (ingots size can be designed by customer);
• Ingot mold materials: Ductile Iron;
• The running speed of the equipment is 0-6 m/min adjustable;
• The driving motor is AC speed-regulating motor with electromagnetic or variable frequency mode;
• The main feature is stepless speed regulation, automatic liquid filling, ingot uniform, low labor intensity;
• The output can be increased by 20%-30% by using this equipment;
• It can form a complete ingot production line by choosing a manipulator ingot stacking machine and rear section transportation equipment.
