Unlocking the Power of Induction: How Coreless Furnaces Work
The coreless induction furnace stands as a cornerstone of modern metallurgy, prized for its efficiency and versatility in melting a wide array of metals.
Its operation hinges on the fundamental principles of electromagnetic induction and the Joule heating effect.
The Science Behind the Heat: A Look at the Working Principle
At the heart of a coreless induction furnace lies a simple yet powerful concept: inducing heat directly within the metal charge.
This is achieved through a carefully orchestrated interplay of electricity and magnetism.
Key Components and Their Roles:
Component
Function
Primary Coil
A water-cooled coil made of high-conductivity copper tubing. It carries a high-frequency alternating current (AC).
Crucible
A refractory-lined vessel that holds the metal to be melted.
Metal Charge
The raw metal placed inside the crucible.

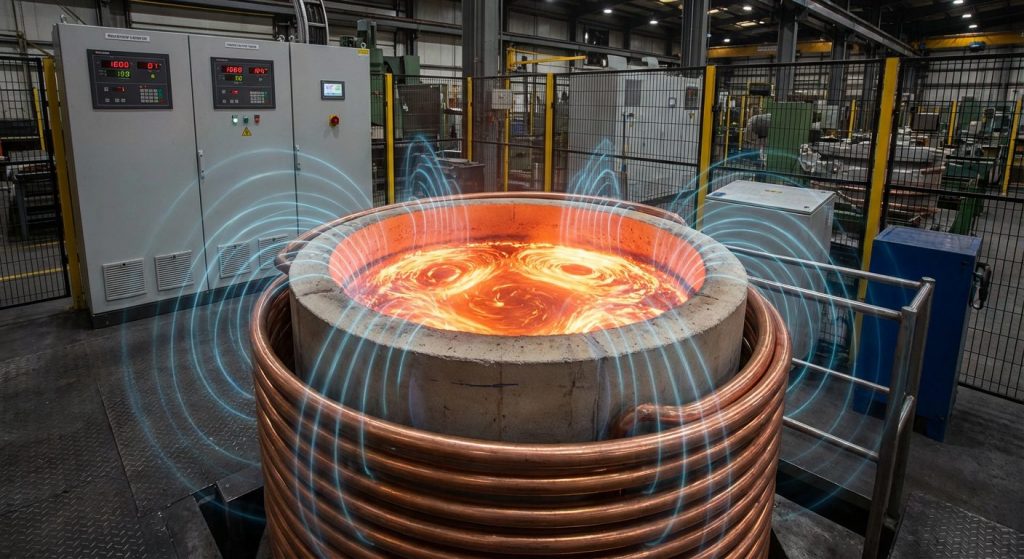

The Process of Induction Heating:
Generating a Magnetic Field: When a high-frequency AC is passed through the primary coil, it generates a powerful and fluctuating magnetic field.
Inducing Eddy Currents: This magnetic field penetrates the refractory lining and induces strong electrical currents, known as eddy currents, directly within the conductive metal charge.
Heating Through Resistance: The metal naturally resists the flow of these eddy currents. This resistance creates intense heat (known as the Joule effect or I²R heating), rapidly raising the metal's temperature to its melting point.
A significant advantage of this direct heating method is the inherent stirring action it creates. The same electromagnetic forces that induce the eddy currents also cause a vigorous and uniform mixing of the molten metal, which is crucial for producing high-quality, homogeneous alloys.
The "Core" Difference: Coreless vs. Cored Furnaces
The defining characteristic of a coreless induction furnace is the absence of a central iron core.
This design choice leads to several key operational differences compared to its cored counterpart:
Flexibility: Coreless furnaces can be started from a cold state and completely emptied, making them ideal for foundries that produce a variety of alloys.
Frequency: They typically operate at medium to high frequencies (1 kHz to 10 kHz), allowing for precise temperature control and faster melting times.
Capacity: Coreless furnaces are well-suited for a wide range of capacities, from small-scale operations to large industrial settings.
Cored induction furnaces, on the other hand, utilize an iron core to concentrate the magnetic field, which enhances efficiency at lower frequencies.
However, this design necessitates keeping the molten metal loop continuous, limiting their flexibility for alloy changes.
Advantages of the Coreless Induction Furnace
The unique design of the coreless induction furnace offers several benefits that make it a preferred choice in many applications:
Energy Efficiency: Direct heating of the metal minimizes energy loss.
Precise Control: Advanced temperature control ensures the production of high-quality metals and alloys.
Cleanliness and Safety: The absence of open flames provides a safer and cleaner working environment.
Fast Melting: The rapid heating process leads to shorter production cycles.
Versatility: The ability to melt a wide variety of metals and alloys makes it a flexible tool for foundries.
