Stainless Steel Melting Furnace

  • Various models and the capacity range from 0.5T to 5T.
  • The melting speed of the induction stainless steel melting furnace is fast, 30-100 minutes/batch.
  • The installation is simple, just need to connect to electricity and water to use, so no need for further installation.
WhatsApp / Phone008617538889778

Product Introduction

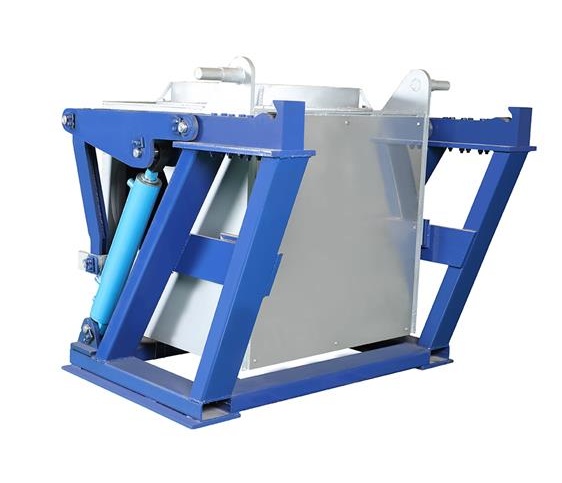

The stainless steel melting furnace is designed to meet the requirements of weak magnetic materials, to improve the resonant part of the power supply, and to meet the requirements of constant power output for melting weak magnetic materials. The casting method adopts hydraulic tilting casting, which can increase the stability of the equipment and improve production efficiency.

Product Features

  • According to customer requirements increase the melting control system, accurate control of the melting process, and display alloy composition.
  • The stainless steel melting furnace has a self-test function, and real-time detection of water temperature, water pressure, over-current, over-voltage, and lack of phase fault information.
  • The electrical cabinet has modular installation, easy maintenance, less fewer broken parts. The separate machine type is mainly used for worse conditions such as dirty working environments, high temperatures, and corrosiveness.
  • Constant power output. It can adjust the power of the heating and heat preservation process, which is beneficial to improve product quality and simplify worker operation;

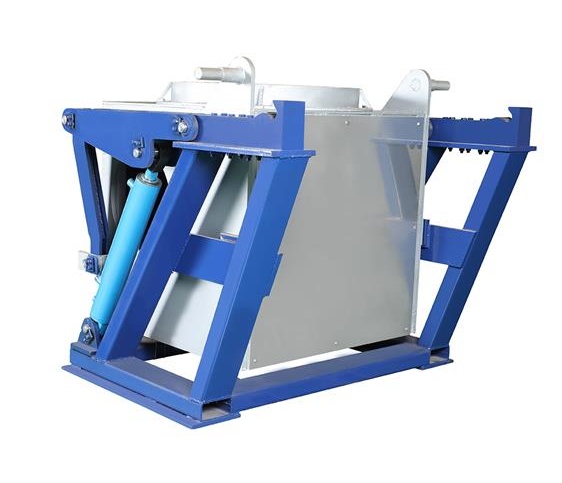

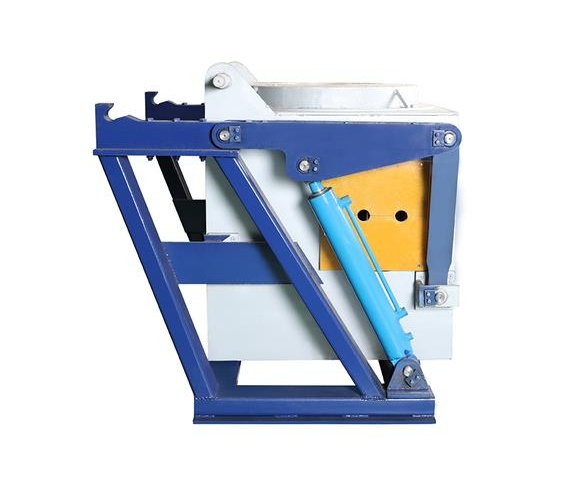

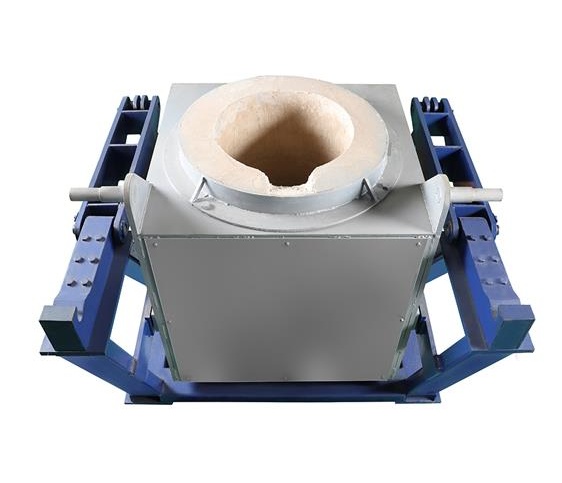

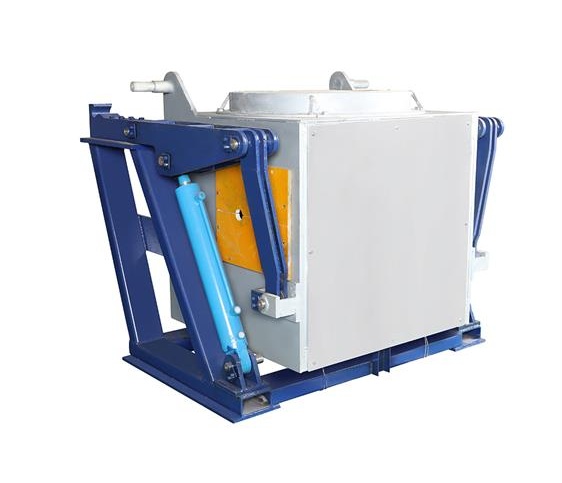

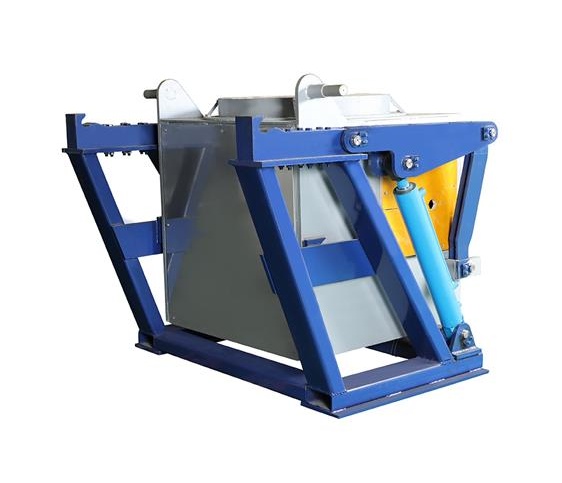

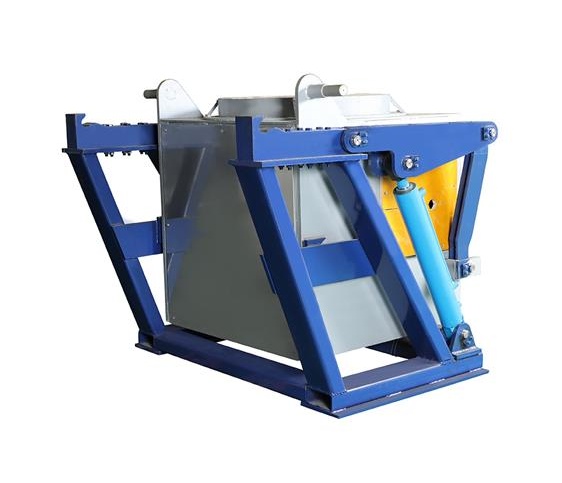

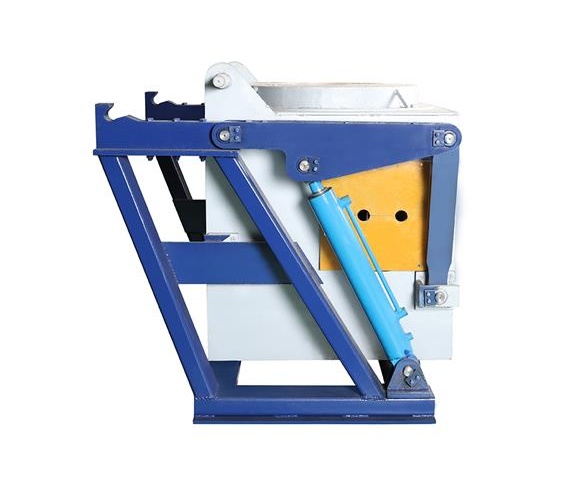

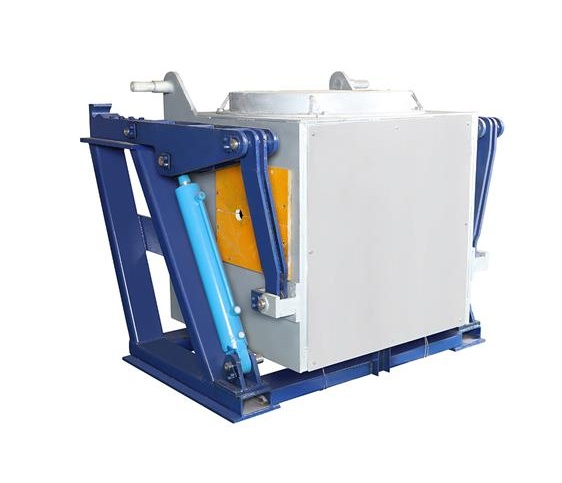

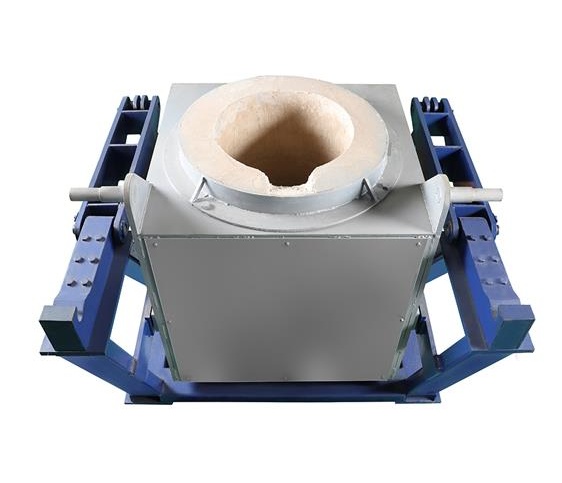

Product Show

Technical Parameter

Melt Furnace Model Power Control Cabinet Furnace Body Associated Transformer(KVA)
Power Voltage MF Voltage Cabinet Size(mm) Frequency Weight Furnace body Size(mm) Induction Coil Inner Diameter Weight
100kg 100kw 3×380v 750v 1000×800×1700 2500 0.5T Φ630
Aluminum shell
Φ300 0.3T 125
250kg 250kw 3×380v 750v 1300×850×2000 1500 0.8T Φ730
Aluminum shell
Φ450 0.7T 250
350kg 350kw 3×380v 750v 1300×850×2000 1500 0.8T Φ730
Aluminum shell
Φ580 0.9T 400
500kg 400kw 3×380v 1500v 1300×850×2000 1000 1T Φ1100
Aluminum shell
Φ580 1T 500
750kg 600kw 3×380v 1500v 1300×850×2000 1000 1T Φ1100
Aluminum shell
Φ580 1.2T 630
1T 800kw 3×660v 2400v 1300×850×2000 1000 1.2T Φ1180
Aluminum shell
Φ720 1.3T 900
1.5T 1000kw 3×660v 2500v 1300×850×2000 800 1.2T Φ1250
Aluminum shell
Φ760 1.8T 1250
2T 1500kw 3×660v 2500v 2400×1000×2000 500 1.6T Φ1350
Aluminum shell
Φ860 2T 1600
3T 2000KW 3×950v 3200v 2400×1000×2000 500 1.6T Φ1400
Aluminum shell
Φ980 2.5T 2500
5T 3000KW 6×950v 3400V 2400×1000×2000 500 2.5T Φ1650
Steel shell
Φ1140 4.5T 3300
10T 6000kw 6×1250v 3700V 3500×1000×2200 300 3T Φ2000
Steel shell
Φ1450 23T 7200
15T 10000KW 6×1250v 4000V 4000×1200×2200 220 3.5T Φ2200
Steel shell
Φ1800 32T 12500
