Induction Steel Melting Furnace

  • The Induction steel melting furnace has various models, capacity 0.1T-20T, fast melting speed, 40-60 minutes per pot.

WhatsApp / Phone008617538889778
Share

Product Introduction

An induction steel melting furnace mainly melts steel, iron, and metal. It is mainly composed of a power control cabinet and melting furnace body. The corollary equipment includes a transformer and a closed cooling tower. The steel melting furnace is widely used in rolling mills, foundry factories, and other industries. It has the advantages of fast melting speed, high production efficiency, strong adaptability, flexible use, good electromagnetic stirring effect, and convenient starting operation.

Product Features

  • Various models, capacity 0.1T-20T, fast melting speed, 40-60 minutes per pot.
  • The equipment has a self-test function, which can detect the fault information of water temperature, water pressure, overcurrent, overvoltage, etc. in real time.
  • The induction steel melting furnace is equipped with a leakage furnace alarm device, a smelting management system, and PLC control. reasonable design, and easy operation.
  • Modular installation of electrical cabinets, all control lines are made by automotive wiring standards, easy to maintain, and less wearing parts.
  • The waterway adopts a carbon-free hose; all the water dividers and clips are made of 304 stainless steel.
  • It can work continuously for 24 hours, save energy and environmental protection, and reduce costs and labor costs.

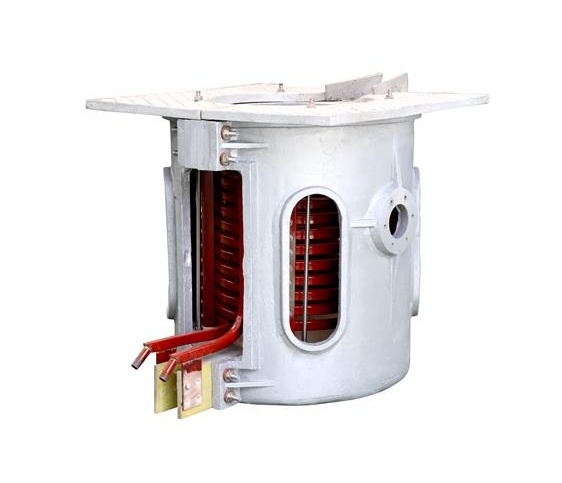

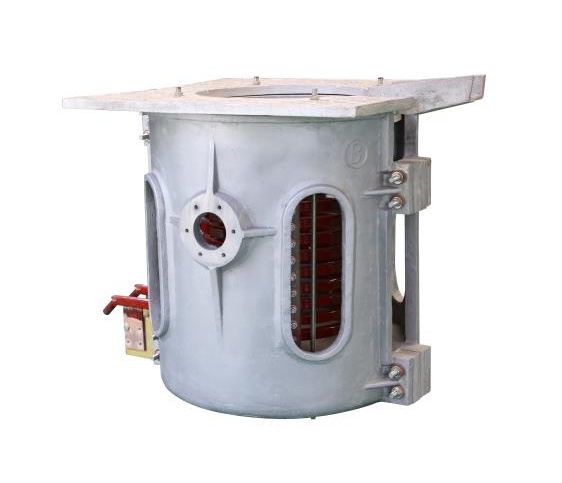

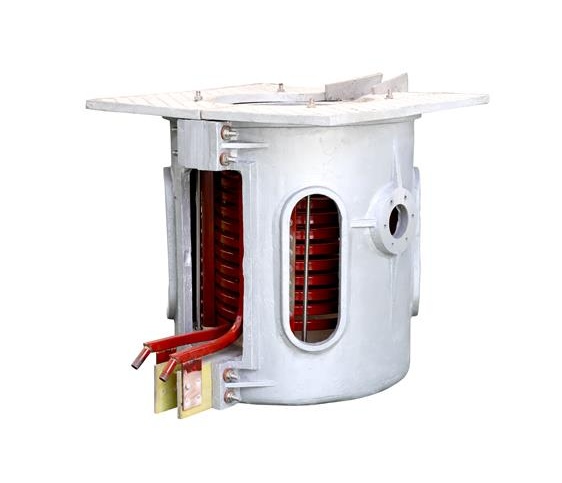

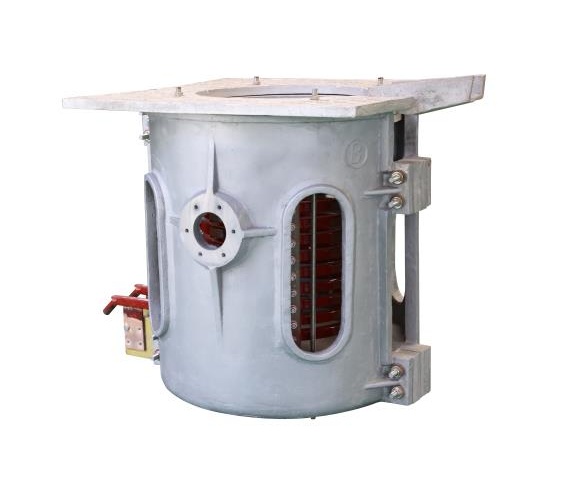

  • The steel melting furnace body with a capacity of less than 5 tons can be cast by aluminum alloy, and the turning mechanism is a reducer, which has the advantages of low price, simple structure, and easy maintenance.

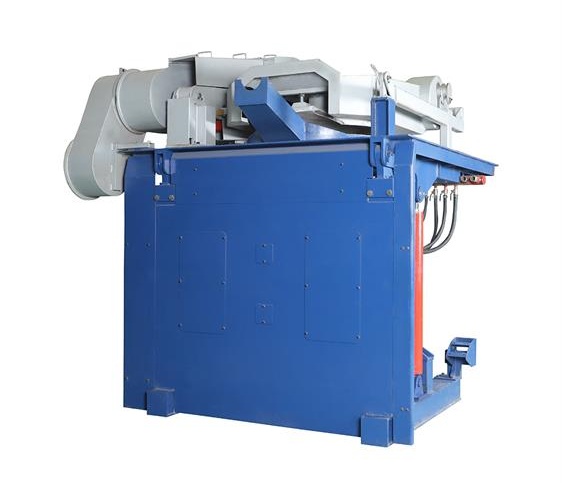

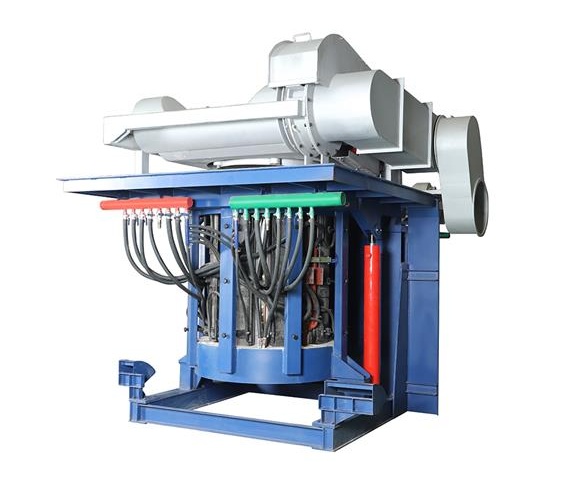

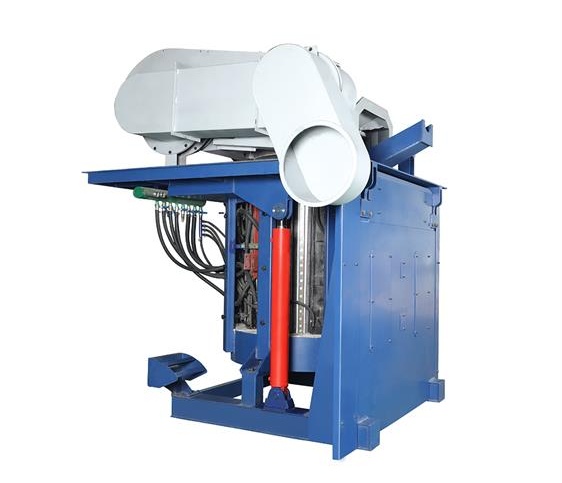

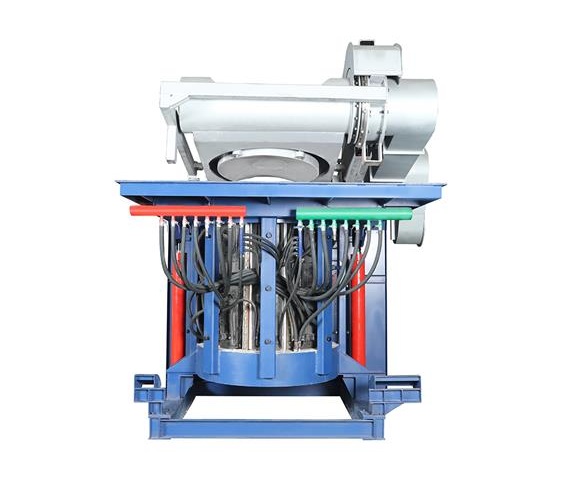

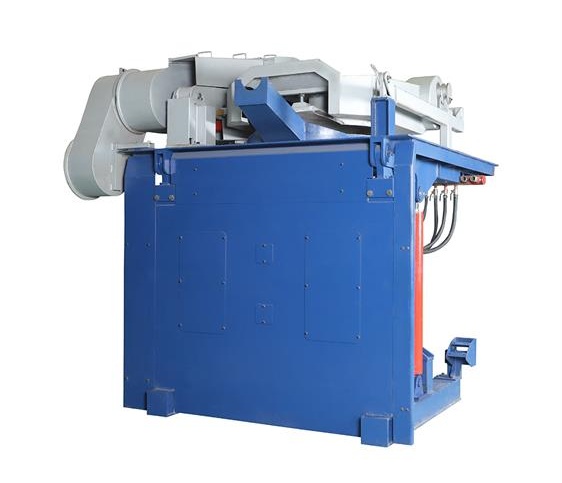

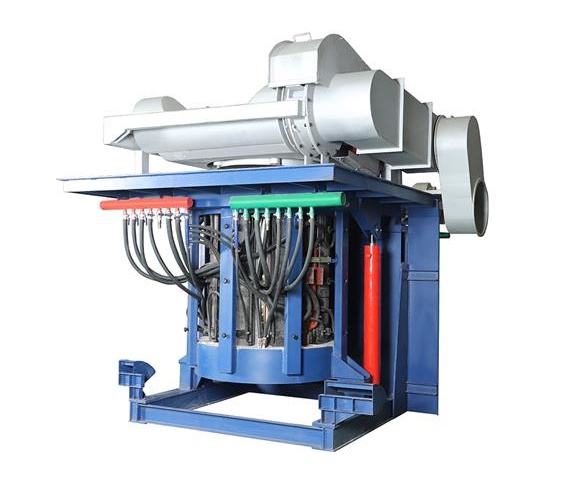

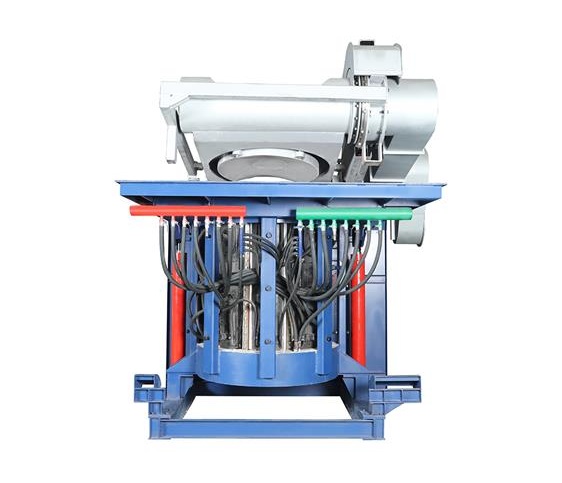

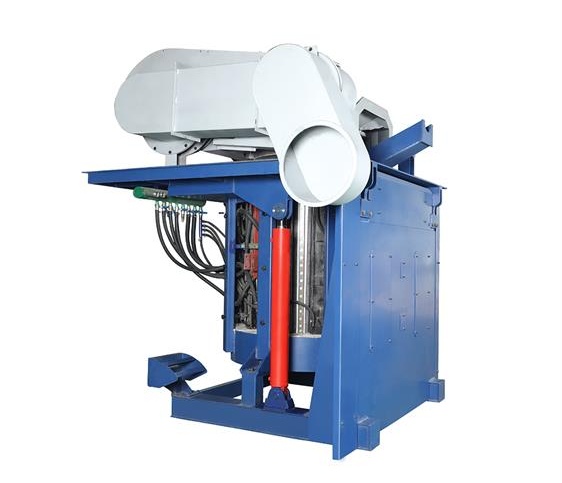

  • The steel melting furnace body of more than 1 ton can use the steel shell furnace body. The shell of the steel shell furnace is welded with high-quality carbon steel, the tilting structure is hydraulically inverted, and there is a yoke shielding layer around the induction coil. It has the advantages of high efficiency, energy saving, safety, and stability.

Product Show

Technical Parameter



Furnace Model(Steel shell) Power Control Cabinet Furnace Body Associated Transformer (KVA)
Power Voltage MF Voltage Cabinet Size Frequency Weight Furnace Body Size Weight
GWA-0.1T 100kw 3×380v 750v 1000×800×1700 2500 0.6T 1250×800×900 0.45T 125KVA
GWA-0.25T 250kw 3×380v 750v 1000×800×1700 1500 0.65T 1450×1050×1250 0.7T 315KVA
GWA-0.5T 400kw 3×380v 750v 1400×850×2000 1000 0.9T 1850×1250×1300 1T 500KVA
GWA-0.75T 650kw 3×380v 750v 1400×850×2000 1000 1T 1860×1320×1450 1.2T 800KVA
GWA-1T 800kw 3×660v 1200v 1400×850×2000 800 1.2T 1870×1420×1550 1.5T 1000KVA
GWA-1.5T 1200kw 3×660v 1200v 1400×850×2000 800 1.2T 2150×1600×1500 1.8T 1250KVA
GWA-2T 1500kw 3×660v 1700v 2300×1300×2000 500 1.6T 2400×1610×1700 2T 1600KVA
GWA-3T 2000kw 3×950v 1700v 2300×1300×2000 500 1.6T 2650×1950×1800 2.5T 2500KVA
Melting Point Steel: 1515℃; Iron: 1535℃; Stainless steel: 1510℃; Copper: 1083℃
Furnace Model(Aluminum shell) Power Control Cabinet Furnace Body Associated Transformer (KVA)
Power Voltage MF Voltage Cabinet Size Frequency Weight Induction Coil Diameter Weight
GWS-0.5T 400kw 3×380v 750v 1400×850×2000 1000 0.9 Φ550 1.2T 500KVA
GWS-0.75T 500kw 3×380v 750v 1400×850×2000 1000 1 Φ630 1.7T 630KVA
GWS-1T 800kw 3×660v 1200v 1400×850×2000 1000 1.2 Φ700 2.4T 1000KVA
GWS-1.5T 1000kw 3×660v 1200v 1400×850×2000 800 1.4 Φ760 3.5T 1250KVA
GWS-2T 1500kw 3×660v 1200v 2300×1300×2000 500 1.6 Φ860 5.8T 1600KVA
GWS-3T 2000kw 3×950v 1700v 2300×1300×2000 500 1.6 Φ980 7.6T 2500KVA
GWS-5T 3000kw 6×950v 1700v 2800×1300×2000 500 4 Φ1150 8.5T 3150KVA
GWS-10T 7000kw 6×1250v 2100v 2800×1300×2000 300 5.5 Φ1450 16.6T 8000KVA
GWS-15T 10000kw 6×1250v 2100v 2800×1300×2000 300 7.6 Φ1580 25T 12500KVA
Melting Point Steel: 1515℃; Iron: 1535℃; Stainless steel: 1510℃; Copper: 1083℃; Aluminum: 660℃

“`
