Copper Melting Furnace

  • The temperature of the copper melting furnace is controllable and it has a fast heating speed.
  • You can choose to use a graphite crucible or make a furnace lining.
  • The capacity of a copper melting furnace ranges from 100kg to 15 tons.
WhatsApp / Phone008617538889778

Product Introduction

The copper melting furnace is a special melting furnace for non-ferrous metals such as bronze, brass, and electrolytic copper. It is suitable for copper ingot processing and copper foundry industries.

Product Features

  • The copper melting furnace has an upgraded melting control system for accurate control of the melting process.
  • The electrical cabinet has modular installation, easy maintenance, and a few easy-broken parts.
  • Complete equipment protection. The whole machine is equipped with water temperature, water pressure, lack phase, over-voltage, over current, voltage limiting / current limiting, starting over current, constant current, and buffer starting, so that the equipment starts smoothly, the protection is reliable and rapid, and the running is stable.
  • Low energy consumption. High heating efficiency. Compared with other heating methods, the copper melting furnace effectively reduces energy consumption. High labor productivity, no pollution, equipment meets environmental protection requirements.

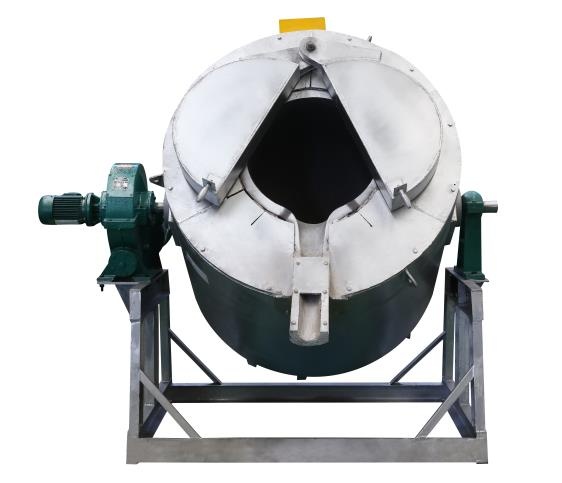

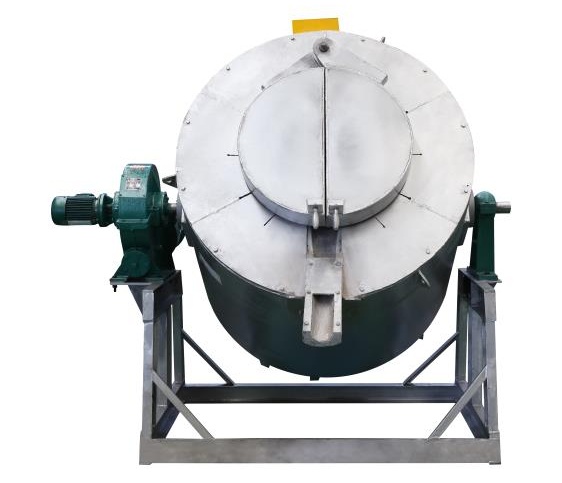

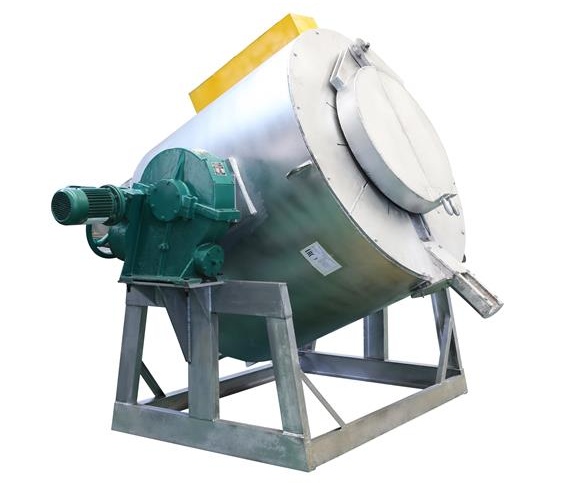

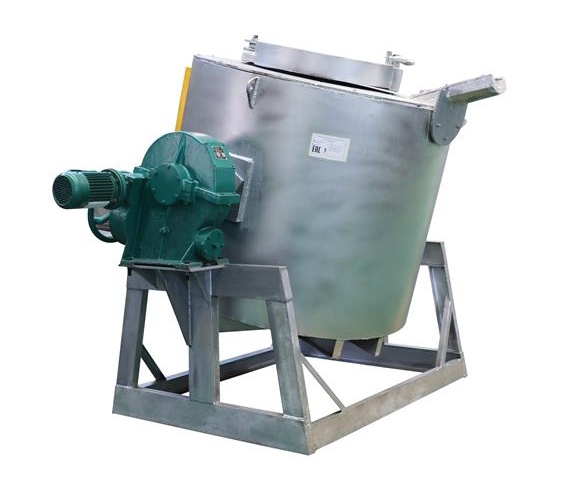

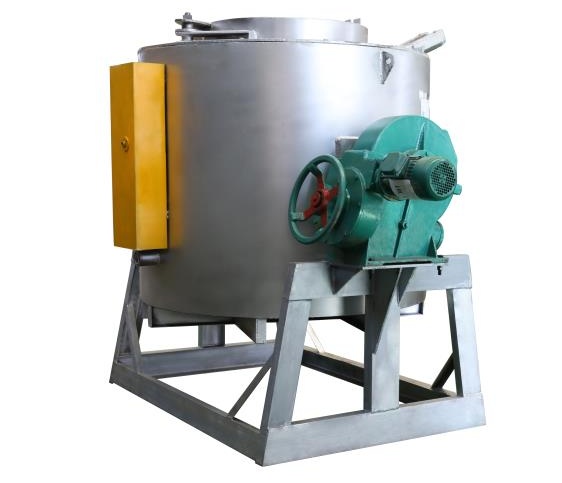

Product Show

Technical Parameter

Melt Furnace Model Power Control Cabinet Furnace Body Associated Transformer(KVA)
Power Voltage MF Voltage Cabinet Size(mm) Frequency Weight Furnace body Size(mm) Induction Coil Inner Diameter Weight
100kg 100kw 3×380v 750v 1000×800×1700 2500 0.5T Φ630
Aluminum shell
Φ300 0.3T 125
250kg 250kw 3×380v 750v 1300×850×2000 1500 0.8T Φ730
Aluminum shell
Φ450 0.7T 250
350kg 350kw 3×380v 750v 1300×850×2000 1500 0.8T Φ730
Aluminum shell
Φ580 0.9T 400
500kg 400kw 3×380v 1500v 1300×850×2000 1000 1T Φ1100
Aluminum shell
Φ580 1T 500
750kg 600kw 3×380v 1500v 1300×850×2000 1000 1T Φ1100
Aluminum shell
Φ580 1.2T 630
1T 800kw 3×660v 2400v 1300×850×2000 1000 1.2T Φ1180
Aluminum shell
Φ720 1.3T 900
1.5T 1000kw 3×660v 2500v 1300×850×2000 800 1.2T Φ1250
Aluminum shell
Φ760 1.8T 1250
2T 1500kw 3×660v 2500v 2400×1000×2000 500 1.6T Φ1350
Aluminum shell
Φ860 2T 1600
3T 2000KW 3×950v 3200v 2400×1000×2000 500 1.6T Φ1400
Aluminum shell
Φ980 2.5T 2500
5T 3000KW 6×950v 3400V 2400×1000×2000 500 2.5T Φ1650
Steel shell
Φ1140 4.5T 3300
10T 6000kw 6×1250v 3700V 3500×1000×2200 300 3T Φ2000
Steel shell
Φ1450 23T 7200
15T 10000KW 6×1250v 4000V 4000×1200×2200 220 3.5T Φ2200
Steel shell
Φ1800 32T 12500
