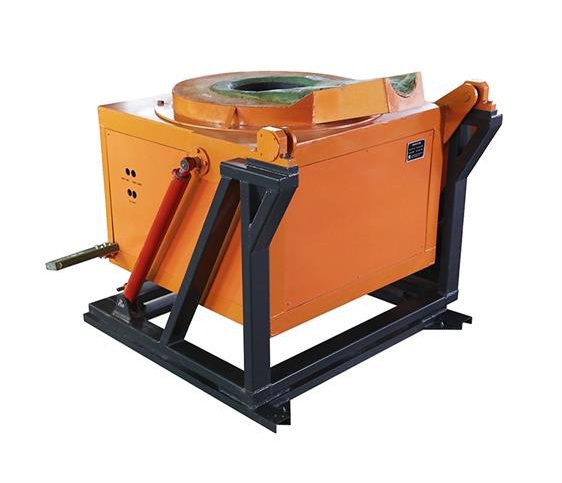

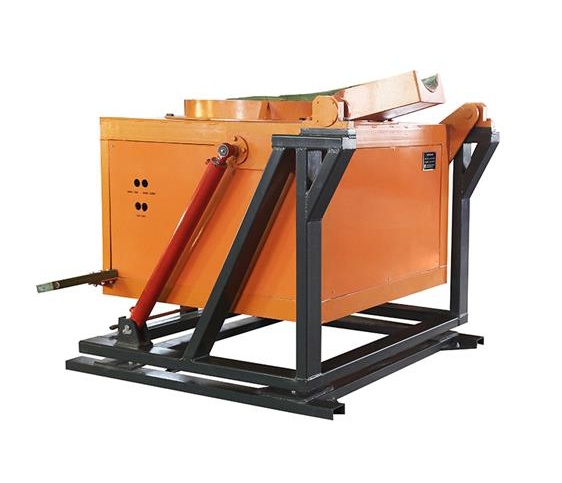

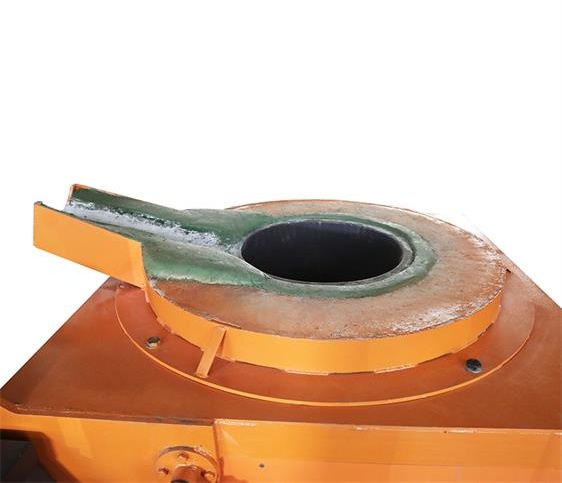

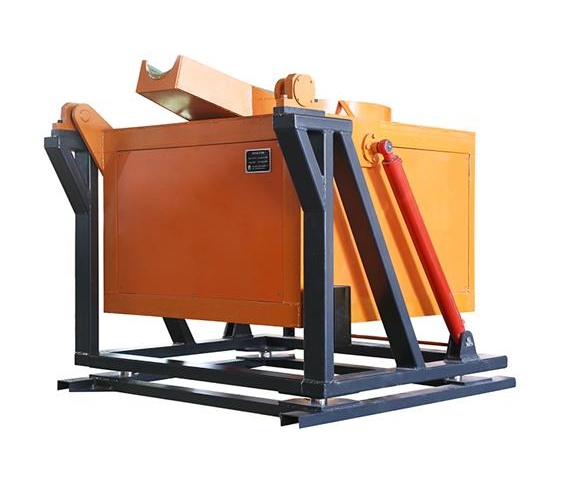

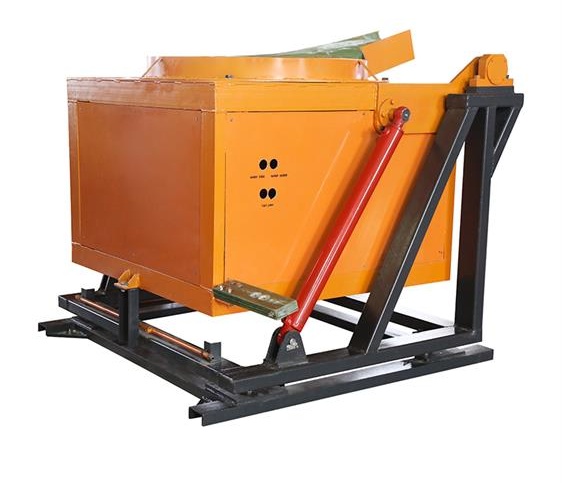

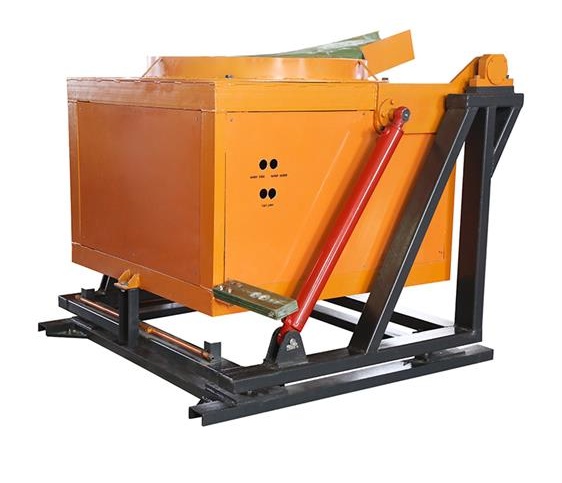

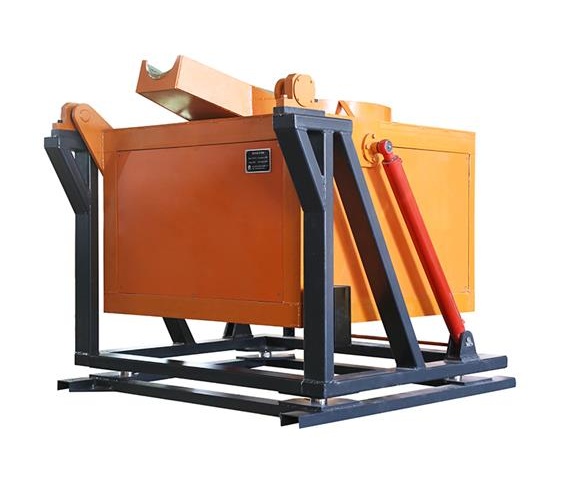

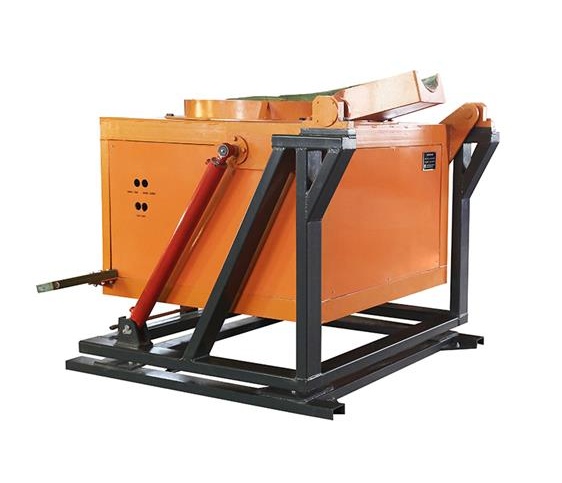

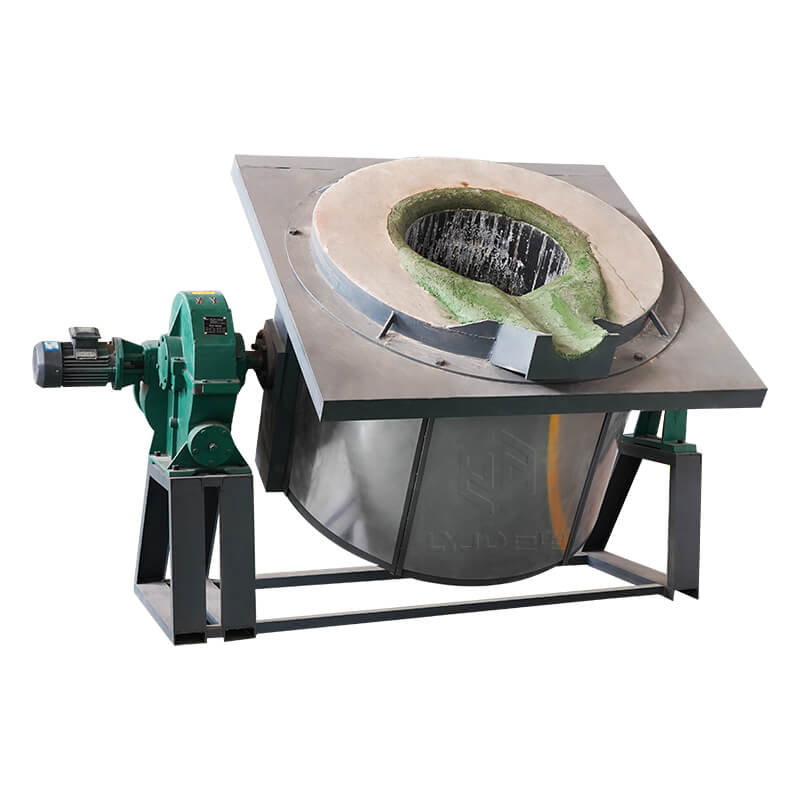

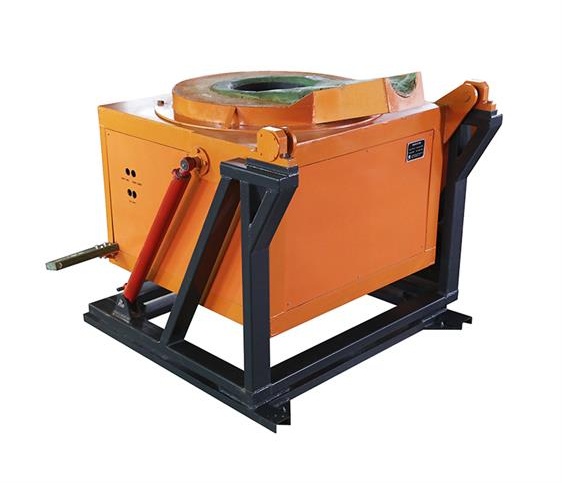

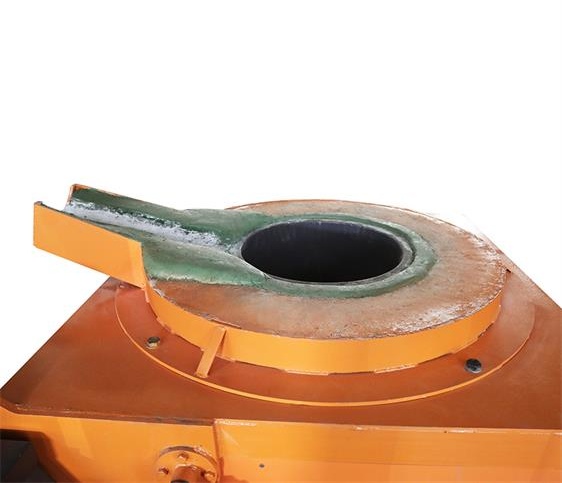

Aluminum Melting Furnace

Aluminum melting furnaces use crucibles to melt all kinds of scrap aluminum.
This aluminum melting furnace is fully digitally controlled with high stability, supporting automatic casting lines that can realize continuous production operation. Can be started and stopped at any time.
All kinds of aluminum cans, aluminum powder, aluminum wires, aluminum ingots, aluminum wheels,

WhatsApp / Phone008617538889778

Email[email protected]

FREE QUOTE CHAT NOW 

Product Introduction Product Features Product Video Technical Parameter  Inquiry

Product Introduction

Aluminum melting furnace for melting aluminum alloy; Raw materials include aluminum ingots, scrap aluminum castings, scrap aluminum doors, and windows, used wires and used cans, etc. It can be equipped with an automatic aluminum ingot production line for automatic casting.

Product Features

Aluminum melting furnaces use crucibles to melt all kinds of scrap aluminum.
This aluminum melting furnace is fully digitally controlled with high stability, supporting automatic casting lines that can realize continuous production operation. Can be started and stopped at any time.
All kinds of aluminum cans, aluminum powder, aluminum wires, aluminum ingots, aluminum wheels, aluminum alloy door windows, etc can melt in our electric-type melting furnace
From aluminum scraps to final ingots, including the treatment of aluminum ash after melting. the recovery efficiency will be around 92%.
Our Aluminum melting furnace is air cooling type, no need for extra water cooling machine investment. Easy to use.
We can supply all these lines from scraps of aluminum cans to final ingots. and we can also supply this line technology to our customers.
The Aluminum melting furnace does not need to be installed, saves time, is convenient and quick
The Aluminum melting furnace can be used for more than 10 years.

Product Video

Technical Parameter

Model	Power Control Cabinet						Furnace Body			Associated Transformer（KVA）
Model	Power	Voltage	MF Voltage	Cabinet Size(mm)	Frequency	Weight	Furnace body Size(mm)	Induction Coil Inner Diameter	Weight	Associated Transformer（KVA）
0.1T	80kw	3×380v	750v	1000×800×1700	2500	0.5T	Φ730 Aluminum shell	Φ500	0.7T	125
0.25T	180kw	3×380v	750v	1300×850×2000	2000	0.8T	Φ1100 Aluminum shell	Φ580	1T	250
0.35T	200kw	3×380v	750v	1300×850×2000	1500	0.8T	Φ1100 Aluminum shell	Φ700	1.2T	400
0.5T	400kw	3×380v	1500v	1300×850×2000	1500	1T	Φ1250 Aluminum shell	Φ760	1.5T	500
0.75T	600kw	3×380v	1500v	1300×850×2000	1000	1T	Φ1350 Aluminum shell	Φ840	1.6T	630
1T	700kw	3×660v	2400v	1300×850×2000	800	1.2T	Φ1400 Aluminum shell	Φ960	1.8T	900
1.5T	800kw	3×660v	2500v	1300×850×2000	600	1.2T	Φ1700 Aluminum shell	Φ1150	2.5T	1250
2T	1000kw	3×660v	2500v	1300×850×2000	600	1.6T	Φ1700 Aluminum shell	Φ1350	3T	1600
3T	1500KW	3×950v	3200v	2400×1000×2000	500	1.6T	Steel shell	Φ1450	12T	2500
5T	2000KW	6×950v	3400V	2400×1000×2000	500	2.5T	Steel shell	Φ1800	19T	3300

Inquiry for Our Product

E-mail：[email protected]

When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
