Aluminum Ingot Casting

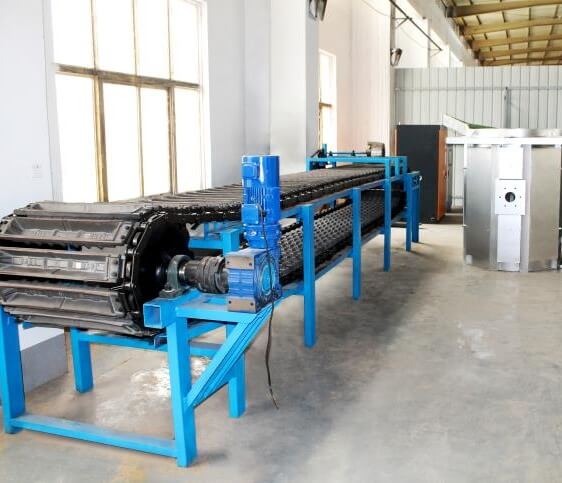

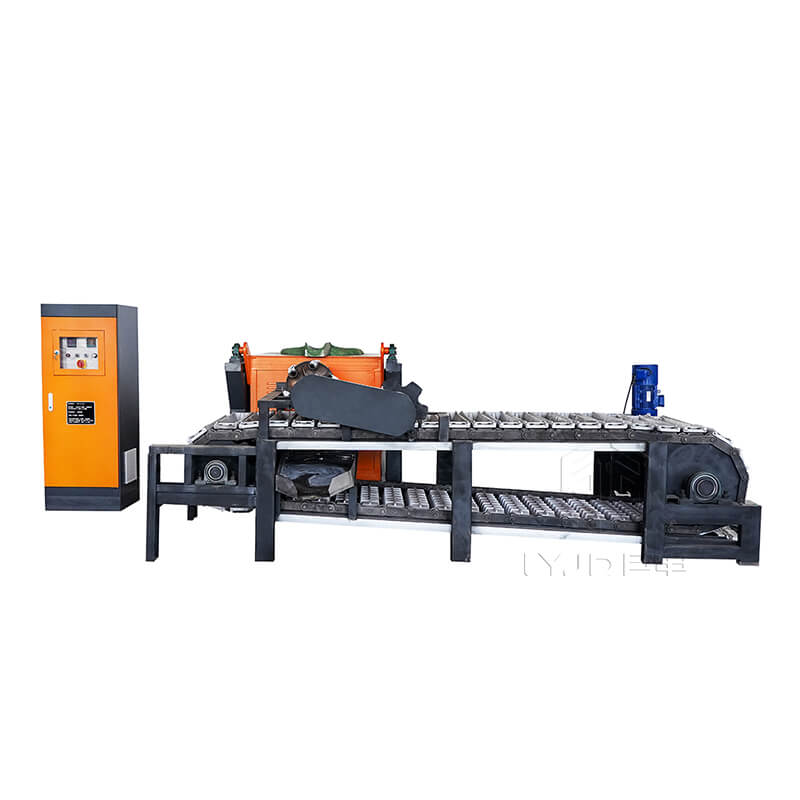

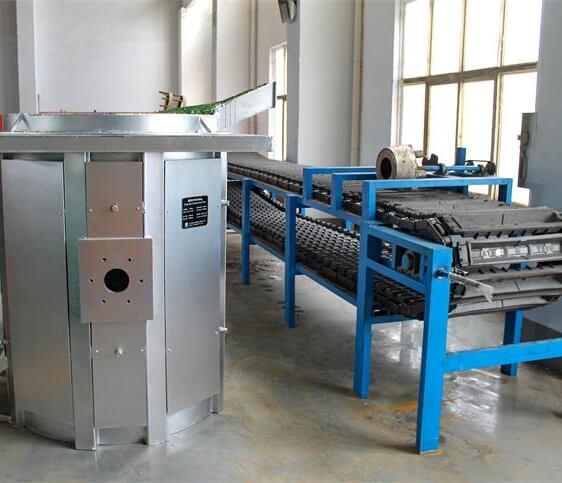

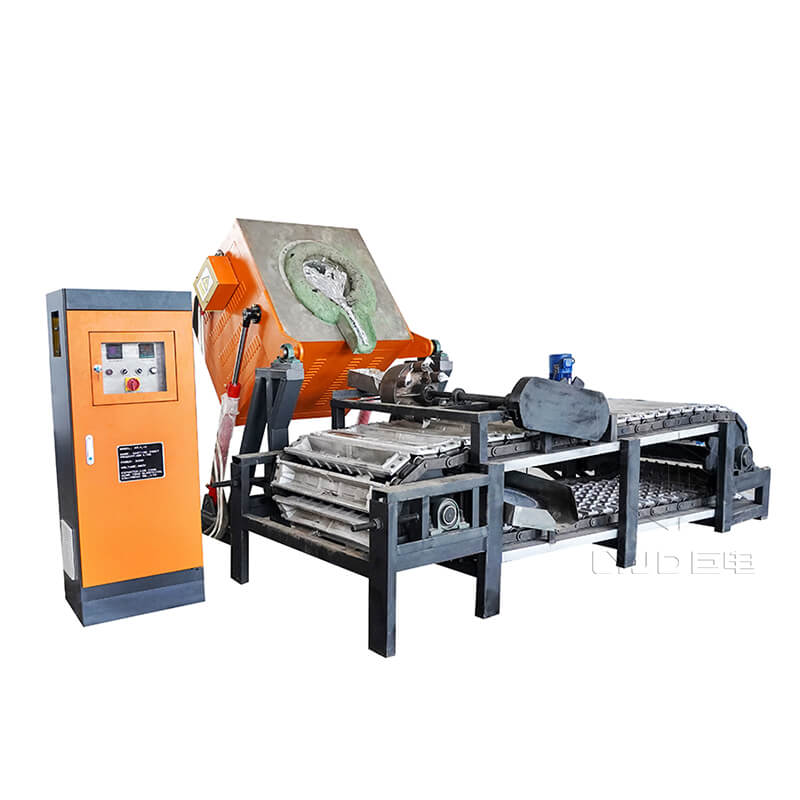

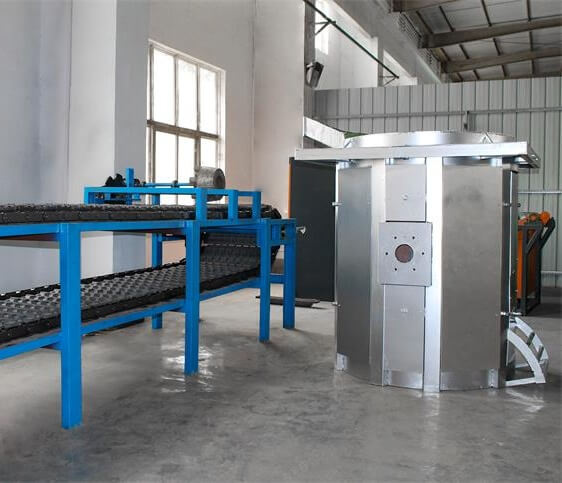

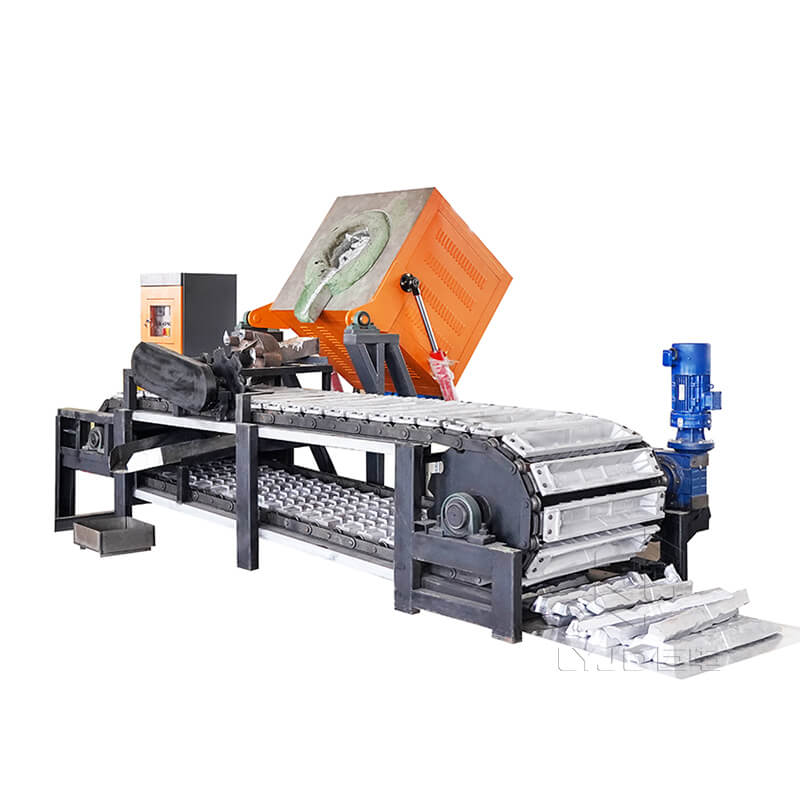

Judian ingot casting machine is mainly used for the automatic casting of aluminum ingots, it can reach 8 Ton per hour. Luoyang Judian aluminum ingot casting machine structure includes a u-steel channel welded steel body, conveyor, speed-adjust motor, reducer, big & small chain wheels & chains, and power distribution systems.

• This equipment is straight-line, 1.3 meters wide, and 5-24 meters long.
• Ingots size: 6-30kg (ingots size can be customized by customer)
• The running speed of the equipment is 0-6 m/min adjustable
• The driving motor is an AC speed-regulating motor with electromagnetic or variable frequency mode.
• The main feature is stepless speed regulation, automatic liquid filling, ingot uniform, low labor intensity,
• The output can be increased by 20%-30% by using this equipment.
• It can form a complete ingot production line by choosing a manipulator ingot stacking machine and rear section transportation equipment.
