Induction Furnace Foundry Optimization: The Strategic Guide to Efficiency, TCO, and Output Stability

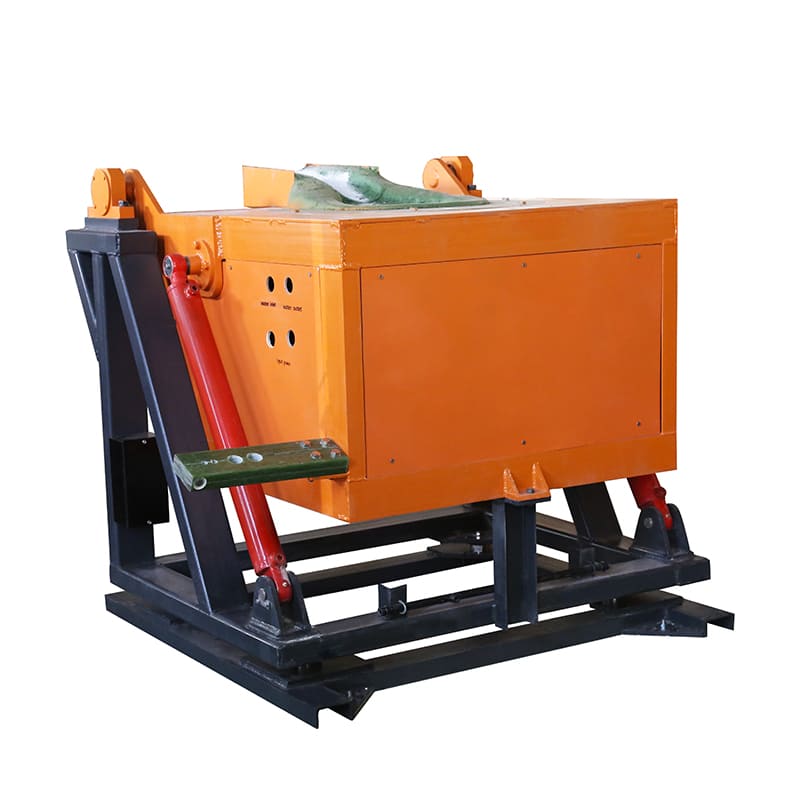

An induction furnace foundry is a specialized metal casting facility that utilizes electromagnetic induction to melt raw metal feedstock—such as scrap steel, pig iron, or non-ferrous alloys—without direct contact between the heating element and the charge. By passing a high-frequency alternating current through a water-cooled copper coil, the furnace creates a rapidly oscillating magnetic field. This field induces electrical eddy currents directly inside the metal, generating localized heat that melts the material with thermal efficiency rates frequently exceeding 90%.
Modern foundries are moving away from traditional cupola and gas-fired furnaces toward induction technology. The core reasons are superior metallurgical purity, precise temperature control, and a significantly lower carbon footprint. However, operating a high-performance induction furnace foundry requires a deep understanding of total cost of ownership (TCO), power distribution, and refractory management.
1. Coreless vs. Channel Induction Furnaces: Which Fits Your Foundry?
In an induction furnace foundry, selecting the proper furnace architecture dictates your operational flexibility, energy bill, and metal quality. The two primary types of induction furnaces used in foundries serve very different operational philosophies.
Coreless Induction Furnaces
The coreless furnace consists of a refractory-lined vessel surrounded by a copper coil. It is the workhorse of modern batch foundries due to its fast melt cycles and ability to handle frequent alloy changes.
Best For: Batch production, high-alloy steels, and operations requiring frequent power shutdowns.
Key Advantage: It allows for complete emptying of the crucible ("cold starting"), making it easy to change from melting stainless steel to carbon steel or ductile iron between shifts.
Operating Frequency: Typically operates at medium to high frequencies (50 Hz to 10,000 Hz) to optimize the melting of smaller scrap sizes.
Channel Induction Furnaces
A channel furnace utilizes a transformer-like core. The induction coil is wound around an iron core, and a "channel" of molten metal forms the secondary loop.
Best For: Continuous holding, large-scale iron casting, and superheating.
Key Advantage: Exceptional energy efficiency when holding large volumes of molten metal at a constant temperature.
Operational Constraint: It must always maintain a "heel" of molten metal in the channel. If the metal in the channel freezes, the furnace is ruined. Therefore, it is not suitable for foundries that shut down completely on weekends.
2. The Economics of an Induction Furnace Foundry: Calculating True TCO
For a factory owner or a steel mill general manager, focusing solely on the initial capital expenditure (CapEx) of foundry equipment is a critical strategic error. The real measure of profitability is the Total Cost of Ownership (TCO) over the equipment’s 10-to-15-year lifecycle.
In a typical induction furnace foundry, energy and raw material losses (burn-off) account for over 60% of recurring operational expenses (OpEx). Investing in high-efficiency power supplies and optimized refractory linings yields massive financial returns.
TCO Financial Breakdown: A Comparative Case Study
Consider a foundry processing 10,000 tons of ductile iron per year. Let's compare a standard market induction furnace with a high-tier, engineered system utilizing advanced IGBT power supplies and optimized thermal insulation.
Financial Variable
Standard Market Furnace
Engineered High-Performance System
Annual Impact on Bottom Line
Initial Purchase Price
$250,000
$310,000
+$60,000 (One-time CapEx)
Energy Consumption
620 kWh/ton
510 kWh/ton
-$132,000 (At $0.12/kWh)
Metal Oxidation (Burn-off)
2.5% loss
0.8% loss
-$85,000 (At $500/ton scrap)
Refractory Relining Frequency
Every 60 heats
Every 120 heats
-$40,000 (Labor & materials)
Unplanned Downtime
120 hours/year
15 hours/year
-$105,000 (Lost production)
Total Net Savings (Year 1)
Baseline
+$302,000
ROI achieved in 10 months
This data proves that paying a 24% premium for a better-engineered furnace pays for itself within the first year of operation. Over a 10-year lifespan, the high-performance system nets over $2.5 million in pure profit.
3. Energy Efficiency and Power Factor Optimization
In any metal heat treatment environment, energy is not just a utility—it is a variable cost that can be managed. Modern induction furnace foundries achieve low energy consumption per ton by addressing electrical efficiency and thermal losses.
The Role of IGBT Power Supplies
Older foundries used SCR (Silicon Controlled Rectifier) units. SCRs draw "dirty" reactive power from the grid, lowering the plant's power factor and incurring massive penalties from utility providers.
Modern systems utilize IGBT (Insulated Gate Bipolar Transistor) solid-state power supplies. IGBT systems offer:
Constant Power Factor: They maintain a power factor of 0.95 or higher regardless of the power level applied.
High Efficiency: They convert incoming AC grid power to the required furnace frequency with up to 97% efficiency.
Load Matching: They automatically adjust to the changing magnetic properties of the metal charge as it transitions from a solid to a liquid state.
Practical Steps to Cut Energy Costs
Hot Charging: Feed continuous casting returns or pre-heated scrap directly into the furnace to capitalize on residual heat.
Lid Management: Keep the furnace lid closed as much as possible. Radiation heat loss from an open bath at 1500°C can account for up to 15% of total power consumption.
Optimal Scrap Sizing: Ensure the scrap density matches the furnace frequency. Scrap that is too large takes longer to absorb the magnetic field, while scrap that is too small can cause "bridging."
4. Maximizing Metal Purity via Electromagnetic Stirring
Technical directors and engineering managers are often plagued by output inconsistency—rejections caused by uneven alloying or cold spots in the pour. An induction furnace foundry solves this problem naturally through electromagnetic stirring.
How Electromagnetic Stirring Works
As the alternating current passes through the coil, it creates massive Lorenz forces within the molten bath. These forces push the liquid metal upward in the center and downward along the sides of the crucible, creating a continuous, controlled toroidal flow.
Chemical Homogeneity: If you add ferroalloys (like nickel, chrome, or carbon) to a 5-ton bath of iron, electromagnetic stirring distributes these alloys uniformly within 60 to 90 seconds.
Temperature Uniformity: It eliminates thermal stratification. The temperature at the bottom of the crucible is identical to the temperature at the spout, preventing casting defects like "misruns" or "cold shuts."
Cleanliness: The stirring motion causes non-metallic inclusions and slag to collide and float to the top of the bath, making it incredibly easy for the operator to skim them off.
5. Mitigating Downtime and Refractory Failure Risks
Unplanned downtime in a foundry is a nightmare scenario. If a furnace coil fails or a refractory lining breaks through while full of molten steel, it causes catastrophic equipment damage and presents severe safety hazards. Managing these risks requires strict adherence to engineering protocols.
Refractory Lining Best Practices
The refractory lining is the only barrier between 1600°C liquid metal and a water-cooled copper coil running thousands of volts of electricity.
Material Selection: Use silica linings for coreless iron furnaces, alumina or magnesia for steel foundries, and neutral linings for high-alloy applications.
The Sintering Heat: The most critical moment in a refractory's life is the first heat (sintering). Heating the new lining too fast will cause thermal cracking. Following a strict computer-controlled ramp-up curve ensures a hard, vitrified face that resists metal penetration.
Push-Out Systems: Invest in hydraulic lining push-out systems. Manual removal of a worn lining with jackhammers can take 24 hours and risk damaging the coil. A hydraulic push-out system completes the job in 30 minutes.
Coil Protection and Diagnostics
Modern foundries utilize continuous earth-leakage monitoring systems. These systems pass a small, harmless electrical current through the bath and the coil. If the refractory lining wears too thin, or if metal begins to penetrate a micro-crack, the system detects a change in resistance and triggers an automatic safety shutdown before a breakthrough occurs.
6. Strategic Sourcing: Overcoming the "Overseas Service" Gap
For buyers in the US, Europe, and Australia, importing a heavy-duty induction furnace from overseas often brings a massive fear of the "Service Vacuum." Plant owners worry that if a custom-designed PLC or a critical capacitor fails, the manufacturer will be unresponsive, leading to weeks of idle production.
To mitigate this risk, foundry managers must shift their perspective from buying a machine to establishing a long-term industrial partnership.
What to Demand from a Manufacturer
Standardized Global Components: Ensure that the furnace control systems use globally recognized brands like Siemens, Schneider, or ABB. If a relay or a breaker fails, your local maintenance team can buy a replacement locally within a few hours.
Remote Industrial IoT Support: The equipment must have secure, encrypted VPN or cloud-gateway access. This allows engineers at the manufacturing headquarters to diagnose your furnace parameters, update software, and read fault codes in real-time without having to fly out to your site.
24-Month Critical Spares Kit: Every export contract should include a comprehensive inventory of consumable and high-risk components (thermocouples, fiber-optic firing boards, and water manifolds) included in the initial shipping crate.
On-Site Commissioning: Never accept "remote installation" for heavy industrial furnaces. Insist on a factory-trained senior engineer flying to your site to handle the cold testing, hot testing, and localized employee training.
Conclusion
Operating a successful induction furnace foundry requires balancing precise metallurgical control with strict operational cost management. By treating the furnace as a profit center rather than a simple capital expenditure, factory owners can drastically reduce their cost per ton of liquid metal.
Prioritizing energy-efficient power supplies, respecting the science of electromagnetic stirring, and choosing a manufacturer that offers robust overseas support frameworks will guarantee that your foundry remains stable, productive, and highly profitable for decades.
FAQ Section
Q1: What is the typical lifespan of an induction furnace copper coil?
Answer: With clean, deionized cooling water and regular maintenance, a high-quality, heavy-walled copper coil typically lasts between 10 and 15 years in a coreless furnace. The primary cause of premature coil failure is hard water scale buildup restricting flow, causing localized melting of the copper.
Q2: Can an induction furnace melt 100% scrap charges?
Answer: Yes. Coreless induction furnaces are ideally suited for 100% scrap charges because of the electromagnetic stirring effect. However, the scrap must be clean and sized correctly. If the scrap pieces are too small or light (like turnings), they will float on top of the bath and oxidize heavily before melting unless pushed down mechanically.
Q3: How do you prevent "bridging" in an induction furnace?
Answer: Bridging occurs when scrap melts and fuses together at the top of the furnace, forming a solid crust while the metal underneath melts and creates a void. This can lead to severe superheating of the lower bath. To prevent bridging, operators should charge heavy, dense scrap at the bottom and lighter scrap on top, and use charging cranes to prevent the scrap from jamming against the sides.
Q4: Why do induction furnaces require deionized water for cooling?
Answer: Induction coils carry high electrical voltages. Normal tap water contains minerals that conduct electricity, which can lead to electrical arcing between coil turns. Furthermore, tap water leaves calcium deposits (scale) on the inside of the copper tubes, reducing cooling efficiency and causing the coil to overheat and fail.
Q5: What is the normal energy consumption per ton for melting steel in an induction furnace?
Answer: For a modern medium-frequency coreless induction furnace, the typical energy consumption ranges between 500 kWh/ton and 600 kWh/ton for melting steel to a pouring temperature of 1600°C. Older, less efficient systems may draw closer to 700 kWh/ton.
Q6: Is it possible to melt both iron and aluminum in the same induction furnace?
Answer: While physically possible, it is highly discouraged in a production environment. The refractory lining materials required for iron (high temperatures, specific chemistry) are different from those required for aluminum. Melting aluminum in a furnace previously used for iron poses a severe risk of chemical contamination and will drastically reduce the lifespan of the refractory lining.
