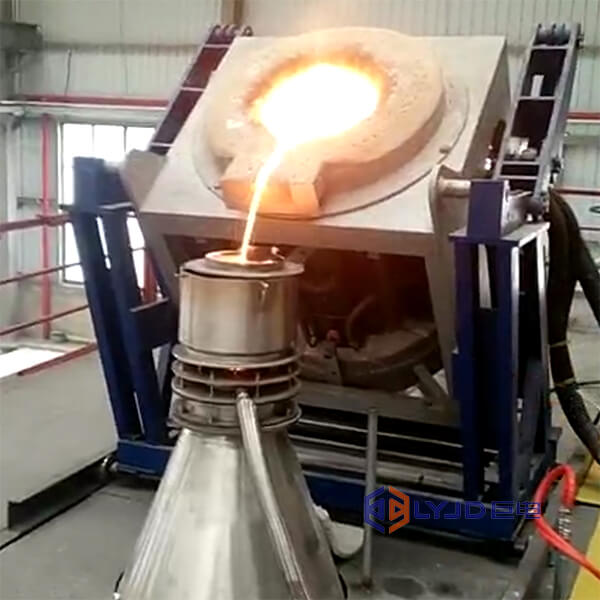

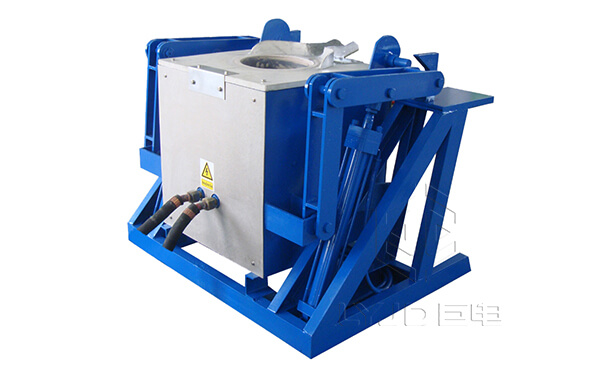

A stainless steel furnace is a type of industrial melting furnace specifically designed for melting and processing stainless steel alloys. It is a heat-generating apparatus used in various industries, including metallurgy, foundries, and metal fabrication.
Stainless steel furnaces are constructed with materials that can withstand high temperatures and corrosive environments. They typically consist of the following components.
The furnace shell is a robust structure that encloses the heating chamber and provides insulation to minimize heat loss. The material of the furnace shell is typically steel or refractory materials.
Stainless steel furnaces employ heating elements to generate heat. These elements can be electric resistive heating elements, fuel burners (such as natural gas or oil burners), or induction coils for induction heating. The choice of heating method depends on the furnace design and the specific application.
The interior walls of the furnace are lined with refractory materials to protect the steel shell from high temperatures and corrosive reactions. Refractory materials, such as firebricks or ceramic fiber, provide insulation and prevent the loss of heat.
Usually, the manufacturer uses the control systems to monitor and regulate the temperature, heating rate, and other parameters of the stainless steel furnaces during the melting process. These systems often include temperature sensors, thermocouples, and programmable logic controllers (PLCs) for precise control.
Furnaces have mechanisms to charge raw materials (such as scrap metal or alloying elements) into the melting chamber and to discharge the molten metal or alloy after the melting process is complete. This can include doors, hoppers, or tilting mechanisms.
Stainless steel furnaces can operate at extremely high temperatures, typically ranging from 1,200 to 1,600 degrees Celsius (2,192 to 2,912 degrees Fahrenheit), depending on the specific alloy and process requirements. The melting process involves heating the stainless steel or alloying materials to their melting point, allowing them to become a liquid for casting or further processing.
Stainless steel furnaces can melt and process various metals, alloys, and other materials. While the specific capabilities of a stainless steel furnace can vary depending on its design and specifications, here are some examples of materials that a stainless steel furnace can typically melt.
Stainless steel furnaces are often used to melt and process different grades of stainless steel alloys. These alloys are primarily composed of iron, chromium, and other elements such as nickel, molybdenum, or titanium.
Carbon steel, which is primarily composed of iron and carbon, can also be melted and processed in a stainless steel furnace. This is commonly done to produce steel with specific properties or to remove impurities.
Stainless steel furnaces can melt and process non-ferrous metals like copper, brass, bronze, aluminum, and their alloys. These materials have various applications in industries such as automotive, construction, and electronics.
Some stainless steel furnaces also can melt and refine precious metals like gold, silver, platinum, and palladium. These furnaces are often used in jewelry making, electronics manufacturing, and precious metal recovery processes.
Refractory metals, such as tungsten, molybdenum, niobium, and tantalum, can also be melted in specialized stainless steel furnaces. These metals have high melting points and are used in applications that require exceptional heat resistance.
Stainless steel furnaces may also be used to melt and process other materials, such as certain ceramics or glass compositions, depending on their design and temperature capabilities.
It's important to note that the specific capabilities and limitations of a stainless steel furnace will depend on its size, temperature range, and other factors. It's always recommended to consult the furnace manufacturer or a qualified expert for precise information regarding the materials that can be melted in a particular furnace.
