Plasma Induction Furnaces

2026.05.22

Working Principles, Design, and Structural Components

Plasma induction furnaces represent an advanced class of metallurgical smelting and refining equipment. By combining the rapid, uniform heating of conventional induction fields with the concentrated high-temperature energy of a plasma arc torch, these systems offer unparalleled refining capabilities. This technology is highly valued for manufacturing ultra-low carbon stainless steels, precision alloys, and high-temperature master alloys containing reactive elements like aluminum and titanium.

1. Core System Configuration and Schematics

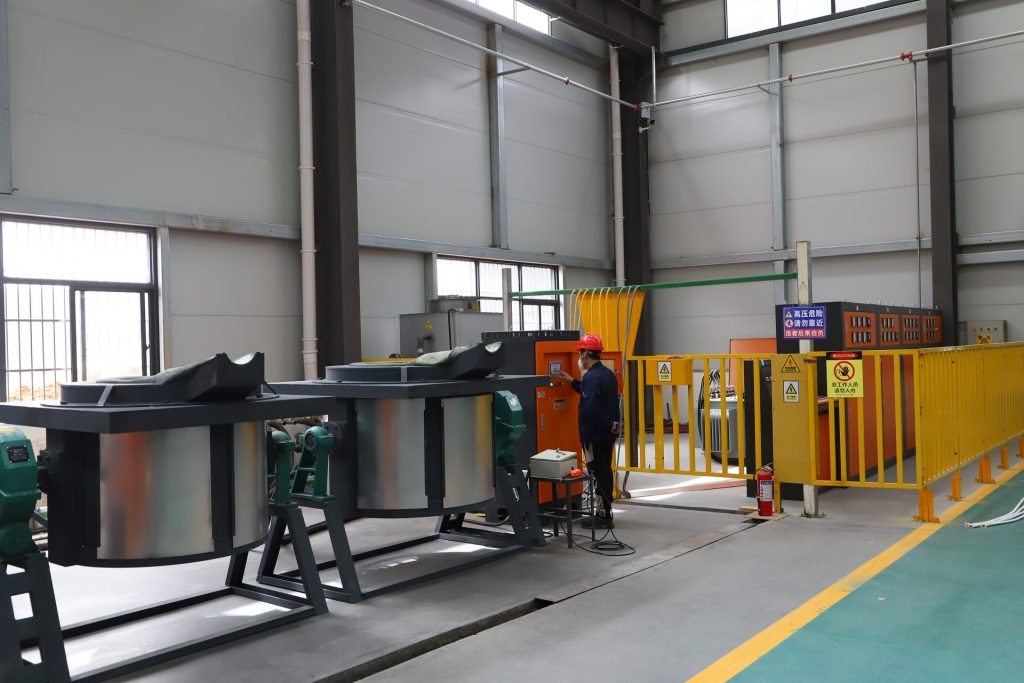

A professional plasma induction furnace installation relies on an integrated, multi-system architecture to maintain both the electrical induction fields and the ionized plasma stream.

The Fundamental Structural Building Blocks

As illustrated in industrial furnace engineering layouts, a complete plasma induction furnace consists of four core technical assemblies:

  1. The Furnace Body Assembly: The physical vessel including the crucible, outer structural framework, and surrounding induction coil array.
  2. The Induction Power Supply Network: Provides alternating current to generate the electromagnetic fields needed to heat and stir the primary metal charge.
  3. The Plasma Gun Torch Assembly: The mechanical assembly that injects the inert working gas and houses the primary negative electrode.
  4. The Direct Current (DC) Plasma Arc Power Unit: A dedicated power supply that drives the high-voltage ionization and maintains a stable DC plasma column.

2. Physics of the Direct Current (DC) Plasma Arc

To operate a plasma induction furnace, technicians must understand gas ionization physics. Under ambient conditions, gas molecules exist in an uncharged, non-conductive state. Introducing a strong external force—such as a high-voltage electrical discharge or focused electron bombardment—forces these neutral gas molecules to dissociate into electrons and positively charged ions.

Quantifying Degree of Ionization ($\alpha$)

The relative ratio of ionized particles within a gas volume is defined as the Degree of Ionization ($\alpha$), which is mathematically expressed by the formula:

$$\alpha = \frac{n}{N}$$

Where:

  • $n$ represents the absolute number of ionized, charged particles.
  • $N$ represents the total cumulative number of gas particles within the defined domain.

Thermal Classifications of Plasma Streams

When a gas is fully ionized, it forms a plasma stream containing an equal balance of positive and negative charges, making it globally neutral. In industrial engineering, these streams are divided into two distinct thermodynamic classes:

Plasma ClassificationIonization Degree (α)Operational Core TemperatureTypical Industrial Applications
High-Temperature PlasmaApproaches $\alpha \approx 1$ (Fully Ionized)Up to hundreds of thousands of Kelvin ($\text{K}$)Solar core physics, thermonuclear fusion research.
Low-Temperature PlasmaApprox. $\alpha \approx 0.01$ (Partially Ionized)Ranges from $5,000\text{K}$ to $30,000\text{K}$Plasma induction furnaces, industrial arc welding, plasma cutting torches.

3. Step-by-Step Functional Ignition Sequence

The basic heating principles of a plasma induction furnace match those of standard induction units, but the ignition of the plasma torch follows a strict sequence to ensure safety and system stability.

[AC Power Input] ➔ [Transformer & Rectifier] ➔ [High-Voltage DC Field Generated]
                                                            │
[Plasma Arc Initiated] ➔ [Anode Transferred to Melt] ➔ [High-Frequency Spark Discharged]
  1. Primary DC Rectification: High-voltage alternating current ($\text{AC}$) from the main grid passes through a step-down transformer, line reactors, and a heavy-duty rectifier assembly. This converts the grid power into a low-voltage, high-current DC output.
  2. Biasing the Electrodes: This modified DC voltage is applied across the primary cathode negative electrode (6) and a secondary auxiliary anode (7).
  3. Gas Injection and Ionization: An inert working gas, typically pure Argon ($\text{Ar}$), is fed into the narrow gap between these electrodes. Simultaneously, a high-frequency spark generator (10) delivers a brief, high-voltage pulse that ionizes the argon gas molecules.
  4. Arc Pilot Formation: This ionization creates a localized, conductive path, forming a stable pilot plasma arc between the cathode tip and the auxiliary anode nozzle.
  5. Transferred Arc Sequence: As the plasma gun is lowered toward the crucible, the main plasma column extends downward until it touches the metallic raw materials. Once contact is made, the auxiliary anode circuit opens via a DC contactor (5). This transfers the main arc path so it runs from the cathode directly to the raw metal charge, which now acts as the primary anode.
  6. Dual-Energy Refining: With the transferred arc established, both systems run at the same time: the plasma torch delivers concentrated thermal energy from above, while the induction coils heat and stir the melt from the sides. This dual-energy approach increases melting speeds and prevents "bridging"—where un-melted scrap forms a solid crust over the liquid metal. Once the charge is fully liquid, operators can lower the plasma torch power to save energy while maintaining standard induction refining cycles.

4. Detailed Component Engineering

A. Core Mechanical Components

As shown in industrial engineering blueprints, the furnace body uses a specialized multi-component layout:

  • Plasma Torch Assembly (1): Positioned vertically through the center of the roof to deliver the primary plasma arc.
  • Inspection Port (2): A dedicated viewing window that lets operators safely monitor melting progress and check bath conditions.
  • Pouring Spout (3): The exit channel used to pour out the refined liquid metal once a heat is complete.
  • Induction Coil Array (4): Heavy-duty water-cooled copper coils wrapped around the crucible to provide electromagnetic induction heating and melt stirring.
  • Crucible Vessel (5): The primary refractory lining designed to hold the high-temperature molten metal bath.
  • Bottom Anode Return Electrode (6): A heavy-duty electrode built directly into the bottom of the crucible to complete the DC circuit through the molten metal.
  • Outer Furnace Shell (7): The main structural steel enclosure that supports and protects the internal components.
  • Plasma Arc Column (8): The high-temperature ionized gas stream that transfers energy from the torch tip to the metal bath.
  • Gas Injection Nozzle (9): Manages the flow and distribution of the inert shielding gas around the arc.
  • Material Charging Hopper (10): A sealed feeding system used to introduce alloys or raw materials without breaking the furnace seal.

B. Advanced Refractory Roof & Shell Design

The furnace roof uses a water-cooled, double-walled steel structure lined with high-purity refractory materials. The central opening for the plasma torch is sealed with heat-resistant asbestos seals to prevent gas leaks. To allow safe inspection during active refining, the roof features quartz glass viewing ports equipped with integrated cleaning brushes or protective high-speed flash shutters.

Depending on the application, the outer furnace shell is built in either a fully sealed configuration for strict atmosphere control, or a semi-sealed design that isolates the upper crucible area while leaving lower components accessible.

5. Process Advantages Over Mineral Fuel Furnaces

Compared to traditional gas or mineral-fuel fired furnaces, plasma induction technology offers clear operational and metallurgical benefits:

  • Elimination of Combustion Hazards: Because the system generates heat through electricity and gas ionization rather than open combustion, it avoids the risk of gas explosions or fuel leaks.
  • Atmospheric Purity: The inert argon gas environment prevents oxygen, hydrogen, and carbon contamination from fuel combustion products, resulting in cleaner metal batches.
  • Precise Temperature Control: Operators can adjust power levels to control bath temperatures across a wide range, making it ideal for processing complex alloys under strict thermal tolerances.

Conclusion

Modern plasma induction furnaces represent a major advancement in high-performance metallurgy by combining the benefits of induction heating with the intense energy of a plasma arc. Understanding gas ionization physics, following proper arc ignition steps, and maintaining high component standards allows modern smelting facilities to achieve excellent alloy purity and consistent operational safety.
